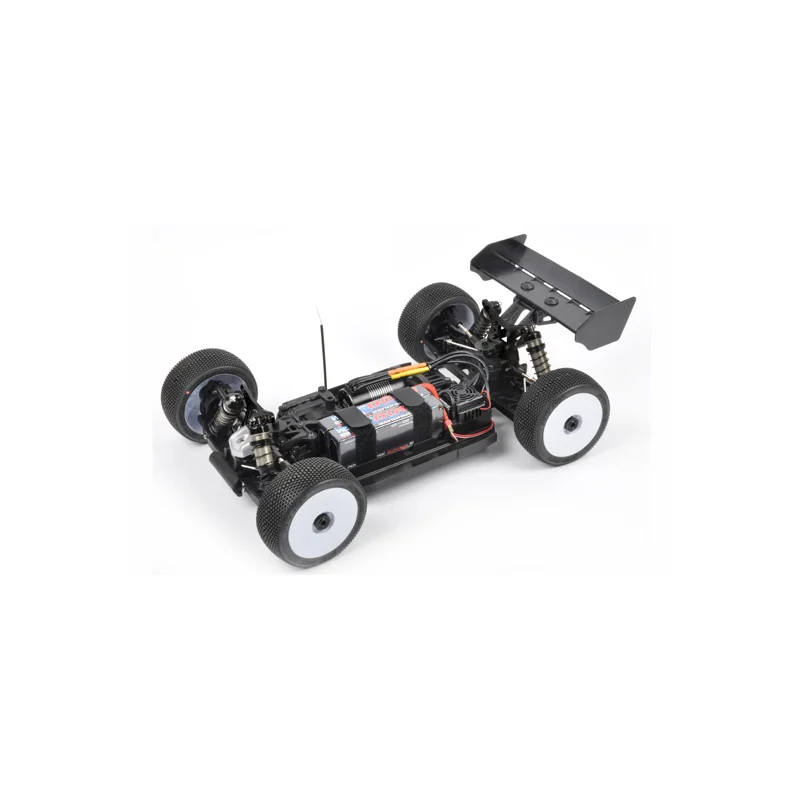

Pirate RS3 E RC buggy – T2M

Data sheet Pirate RS3 E

Brand	T2M
Reference	T4962
Type of product	RC buggy
Remote control	Not included
Use	ARTR
Transmission	4×4

See product description

Product description : Pirate RS3 E

RC Buggy Pirate RS3 E

– Lightweight 7075-T6 aluminum frame with 3mm CNC treatment
– Front and rear chassis reinforcements
– RC plate with waterproof receiver box
– battery compartment : 2x2S / 4S / 6S
– Side protection mud flaps
– Front Cage type body in transparent polycarbonate included
– One piece nylon fin
– Multi-adjustment aileron support
– 4×4 transmission
– Transmission entirely on ball bearings.
– Treated light weight differential gears.
– 3 bevel gear differentials (2 satellites and 4 planetary)
– Differential silicone grease 5000cSt / 7000cSt / 10 000cSt
– 46 dts steel center ring gear
– Center ring gear protection
– Differential ring gear Front and rear 43 dts
– Front and rear central cardan shafts, CVD type, with protective bellows
– Aluminum engine mount (quick installation/removal of the engine)
– CNC front and rear wishbone supports.
Multiple adjustments possible.
– Reinforced triangles axles
– Reinforced front and rear wide wishbones
– Front and rear camber links with reversed pitch
– Front and rear shock absorber supports, aluminum 7075 -T6 CNC multi-adjustable
– Big Bore 20mm shock absorbers with treated body
– 5 holes pistons x1,2mm / x1,3mm / x1,4mm
– Silicone oil 450cSt
– Shock rod protection bellows
– Front 18° CNC 7075 -T6 aluminum stub axles and stub axle holders (27° head)
– Aluminium Ackermann bar
– Anti-wear treated aluminum triangulation ball joints
– Front anti-roll bar 2,4mm
– Rear anti-roll bar 2,6mm
– Aluminium 7075 -T6 CNC multiadjustment rear spindles
– Anti-loosening aluminium wheel nuts
– Aero disc type rims

Dimensions :
– length : 510mm
– height : 180mm
– wheelbase : 327mm (adjustable)
– width: 310mm
– weight: 3300g (depending on equipment)

Recommended sprockets according to the engine KV :
– 2000 KV motor: 18T/19T sprocket
– 2200KV motor: 16T/17T sprocket
– 2600KV motor: 14T/15T pinion

Pinion references :
– T4962/13 motor pinion 13T
– T4962/14 motor pinion 14T
– T4962/15 motor pinion 15T
– T4962/16 motor pinion 16T
– T4962/17 motor pinion 17T
– T4962/18 motor pinion 18T

Equipment available separately :
– Tires + insert
– Brushless motor + drive ( T49012 combo 2050KV/ 150Amp )
– Tires, transmitter, receiver, 1 servo
– Motor gears ( 13T, 14T, 15T, 16T, 17T, 18T )
– LI-PO battery 2x2S (T1380002C ) or 1x 4S (T1374004C)
– LI-PO Duo charger (T1248)
– Charging bag (T1244/2)

---

---
