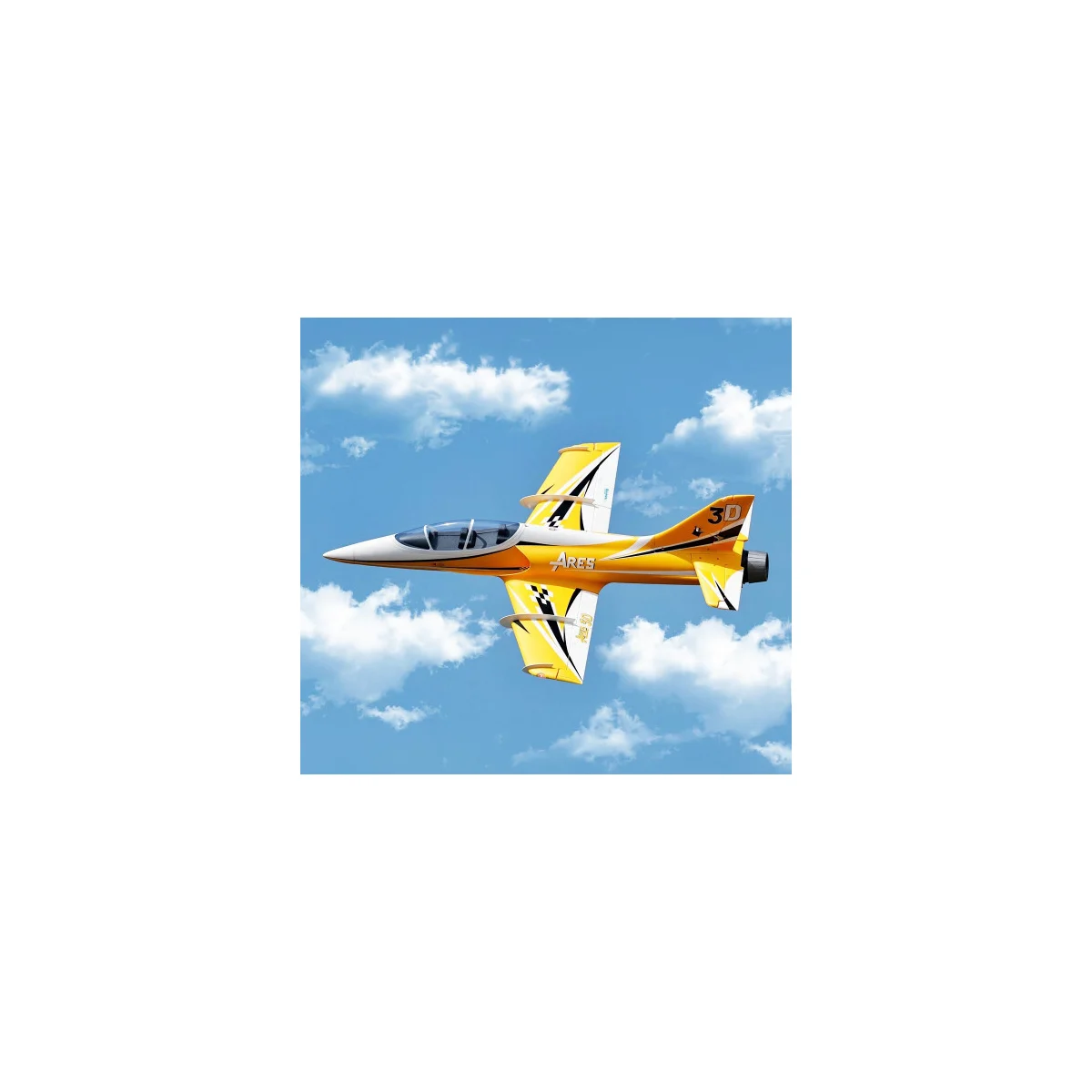

ARES yellow 6S PNP radio-controlled electric airplane

Data sheet ARES yellow 6S PNP radio-controlled electric airplane

Brand	Freewing Model
Reference	Z57049Y
Type of product	RC aircraft
Power source	electric
Accessories	RC : Radio control
Remote control	Not included
Use	PNP
Color	jaune
In our catalogue since	March 2026

See product description

Product description : ARES yellow 6S PNP radio-controlled electric airplane

TheFreewing Ares 90mm EDF Jetis a major advancement in EDF jet design, engineered for pilots who want to go beyond speed or scale and enter the world of 3D and post-stall aerobatics.

Developed in partnership between aerobatics champion Sebastiano Silvestri andFreewing Model, the Ares is specifically designed for extreme aerobatics, including cobras, flat spins, and suns.

At the heart of its extreme capabilities is Freewing’s second-generation dual-axis thrust vectoring system.

Thanks to a redesigned nozzle structure, thrust loss has been reduced from 35% in the first generation to less than 6%, meaning significantly more power is available for maneuvers.

post-stall.

Combined with two onboard gyros and an adjustable CG weight system, the Ares gives pilots the precision, stability, and authority needed to perform maneuvers rarely seen on jets.

Practical innovations such as quick-release wings with self-connect wiring, a 7-LED lighting system, and durable CNC-machined landing gear legs make the Ares both easy to transport and enjoyable to fly.

Equipped with a powerful 12-blade 6S EDF propulsion system and an advanced dual-gyro configuration, this jet delivers both raw power and precise control, paving the way for a new level of EDF aerobatics.

Features of the Ares 90mm FREEWING Turbine Jet

• TheEDF Ares 90mm Jetis equipped with athrust vectoringsystem that enhances its performance to enable extreme 3D aerobatic maneuvers, such as cobras, flat spins, suns, and much more.

• Its second-generation dual-axis thrust vectoring system features a redesigned nozzle structure that reduces thrust loss from 35% to less than 6%, providing more usable power for post-stall maneuvers.

• Every detail of the Ares is designed using the aerobatic expertise of Sebastiano Silvestri, in partnership with Freewing, to deliver aJetbuilt for high-level 3D flight.

• Two onboard gyroscopes provide increased stability, one optimizing the control surfaces and the other optimizing the thrust vectoring for advanced aerobatic maneuvers.

• Gyroscope gain can be adjusted proportionally using a knob or slider to suit individual preferences, and a separate mode switch can be assigned for simple on/off control.

• Quick-release wings with self-connecting wiring make field assembly fast and convenient.

• The integrated 7-LED system enhances orientation and flight perception, helping pilots maintain control during complex maneuvers.

• Flap geometry allows for optional, user-programmable flap-aileron mixing for improved low-speed roll control.

• The wings improve aerodynamic stability and add lateral surface area for increased level flight performance.

• The high-power EDF configuration includes a 3668-1960Kv internal rotor motor, a turbine with 12 blades and a 120A ESC with thrust reversal offer both raw power and precise control. The adjustable CG weight system allows pilots to fine-tune the jet’s balance for optimal performance in 3D flight or forward flight. The plastic coating protects high-wear areas from damage for increased durability. No exposed foam! The Ares is fully painted, including the white areas, for an enhanced appearance and professional finish. The durable, retractable landing gear features CNC-machined, shock-absorbing struts and a reinforced nose gear to ensure worry-free takeoffs and landings. Technical Specifications: For experienced pilots, this jet is capable of performing impressive maneuvers thanks to thrust vectoring. Wingspan: 1156 mm Length: 1400 mm Weight (without battery): 2626 g Motor: 3668-1960Kv inrunner brushless motor installed

Controller: 120A brushless with thrust reverser, equipped with an installed EC5 connector

Turbine: 90 mm 12-blade installed

Servos: 11 installed

Landing Gear: Retractable with CNC-machined legs installed

Structure: Durable EPO foam

Required Components:

• 13-channel radio minimum + receiver

• 6S 5000–6000 mAh LiPo battery

• EC5 connector

• Battery charger

---

---

RC aircraft
–Box size :80 cm x 0 cm x 0 cm
